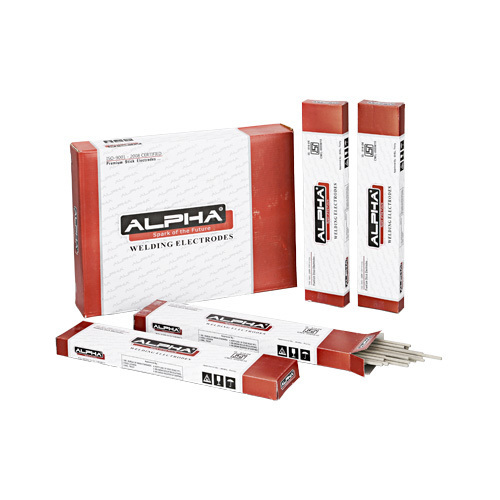

Product Description
ALPHA 6013 CODING - IS 814 - 2004 EC4410X, AWS/ A5.1 ; E6010
An all position electrode specially formulated with iron powder addition which improve weld appeal and smooth arc characteristic. The mechanical prop. are good na d of radiographioc quality with sub zero impact strength.
CHEMICAL COMPOSITION (%) (Typ) | MECHANICAL PROPERTIES TYPICAL | Size (mn) (USE AC 50V Or DC+-) AMPS |
C | 0.10 | UTS | 512.0 n/mn | 2.50*350 | 60-80 |
MN | 0.57 | YS | 412.0n/mn | 3.15*350
| 80-120 |
Si | 0.19 | Elongation (GL = 5d) | 24.2 | 4.0*350
| 120-150 |
S | 0.021 | CVN Impact Values | | 5.0*350
| 150-200 |
P | 0.021 | -29oC. (in joule) | 38
|
|
|
| |
|
|
|
|
Applications:
*Maintenance welding.
*Shop welding.
*Roof welding and cross country pipe lines.
